HYDRA-R 60W Reformed Methanol Fuel Cell for Off-Grid Power

HYDRA-R 60W is a compact reformed methanol fuel cell (RMFC) system designed for continuous off-grid power. It converts a methanol-water fuel mixture into hydrogen on demand, providing up to 60W of quiet, reliable power for remote monitoring, telecom backup, autonomous sensors and other long-duration applications.

Why Choose the HYDRA-R 60W Methanol Fuel Cell?

Low Operating Cost for Off-Grid Power

HYDRA-R 60W is designed for long-duration off-grid operation with significantly lower fuel and logistics costs than conventional gasoline or diesel generators. The methanol-water fuel mix simplifies storage and resupply, reducing dependence on frequent fuel deliveries and grid infrastructure.

All-Weather 60W Fuel Cell Operation

Integrated thermal management ensures reliable cold starts without external heating. Designed for demanding remote environments, HYDRA-R 60W operates from -40°C to +50°C and is rated for operation at altitudes up to 3,500m. Integrated thermal management supports reliable cold starts without external heating.

Higher Efficiency Than Direct Methanol Fuel Cells (DMFC)

HYDRA-R 60W uses onboard methanol reforming to generate hydrogen for a high-temperature PEM fuel cell stack, avoiding direct methanol crossover. The system achieves >35% efficiency compared with approximately 20–25% for typical DMFC systems, with a target stack life of >5,000 hours.

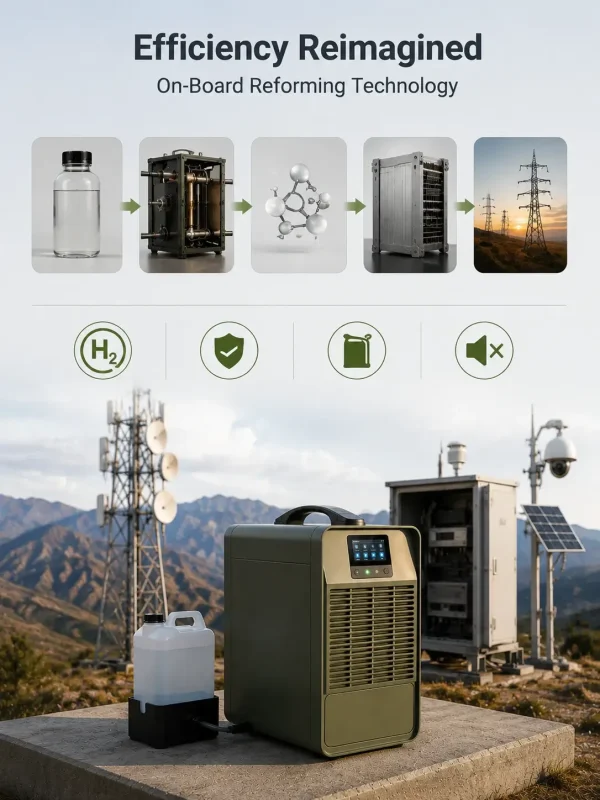

How the HYDRA-R 60W Reformed Methanol Fuel Cell Works

Diagram: Methanol-Water → Reformer → Hydrogen-Rich Gas → HT-PEMFC Stack → DC Output

Unlike Direct Methanol Fuel Cells (DMFC) that suffer from methanol crossover —where unreacted methanol leaks through the membrane, degrading efficiency and shortening stack life – HYDRA-R 60 uses high‑temperature PEM technology with an integrated reformer:

Hydrogen‑on‑Demand

HYDRA-R generates hydrogen on demand from a methanol-water fuel mixture only when power is required. No high-pressure hydrogen storage or external hydrogen infrastructure is required.

No Direct Methanol Crossover

The onboard reformer converts methanol into hydrogen before it reaches the PEMFC stack. Because the stack does not directly process liquid methanol, HYDRA-R avoids the methanol crossover associated with direct methanol fuel cells.

Reduced-Flammability Methanol-Water Fuel

The 50% water content reduces flammability compared with neat methanol. Fuel handling and storage should follow applicable safety, packaging and transport requirements.

Silent Operation — ≤45dB

Minimal vibration. Air‑cooled design. Low acoustic output makes HYDRA-R 60W suitable for remote monitoring, surveillance infrastructure and noise-sensitive sites.

HYDRA-R 60W Applications: Off-Grid & Remote Power

Remote Telecom & 5G Backup Power

Autonomous power for weeks. No grid connection. No diesel delivery logistics. 80% fewer site visits compared to generator‑powered sites.

Border & Infrastructure Security

Weeks of unattended power for AI cameras, radar, and perimeter sensors. Silent operation avoids detection. Minimal thermal signature.

Pipeline & Environmental Monitoring

Remote sensor nodes in mountains, deserts, arctic environments. -40°C proven. 3,500m altitude rated. Pour methanol and go.

Emergency Backup & Temporary Field Operations

Instant deployment. No specialized equipment. Standard HDPE container storage. Rapid setup for disaster response and temporary camps.

Reformed Methanol Fuel Cell vs. DMFC and Diesel Generators

Feature	SOLIDHYDRO HYDRA‑R (RMFC)	DMFC	Diesel
Efficiency	High (>35% System)	Low (20‑25%)	Moderate
Fuel Cost	Ultra‑Low	High	Moderate
Service Life	Long (>5000h Stack)	Short (Degradation)	Frequent Oil Changes
Emissions	Ultra‑Low / Clean	Low	High (NOx, PM)
Noise	Low Noise (≤45dB)	Quiet	Very Noisy

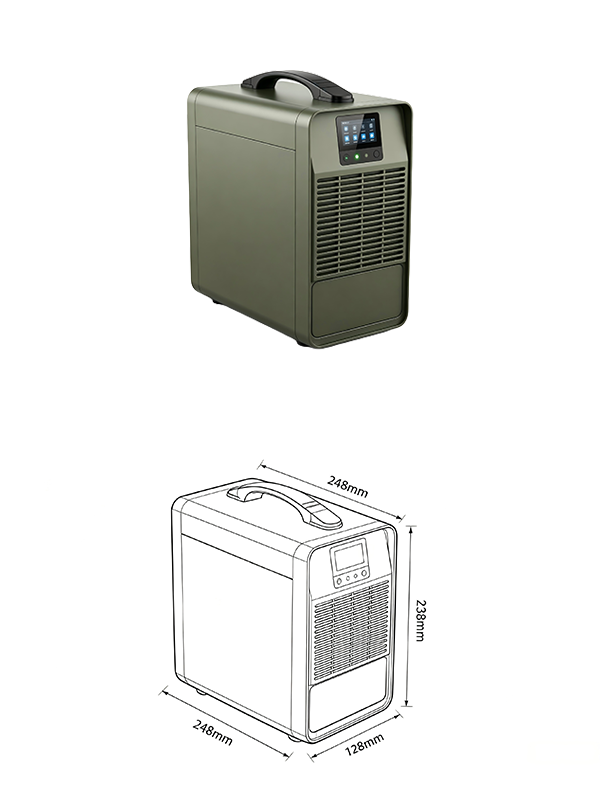

HYDRA‑R 60W Specifications

HYDRA‑R 60W

Parameter	Value
Rated Power	60W (Peak 80W)
Technology	Reformed Methanol Fuel Cell (RMFC) with HT-PEMFC
Fuel Type	Methanol-Water Mixture (50% Water)
Fuel Cost	¼ of Gasoline
System Weight	≤6.0kg (Including Fuel)
Runtime	7×24h+ (Refillable)Up to 7 days continuous operation, refillable
Operating Temp	-40°C to +50°C
Max Altitude	3,500m
Output Interface	DC Module (Customizable)
Noise Level	≤45 dB
Emissions	Ultra‑Low / Clean

Frequently Asked Questions

Q: Why is Reformed Methanol (RMFC) better than Direct Methanol (DMFC)?

A: RMFC eliminates “methanol crossover” issues that plague DMFCs, resulting in much higher efficiency (>35% vs 20‑25%), longer stack life (>5000h), and the ability to use a safer 50% methanol‑water pre‑mix.

Q: How do I store and handle the methanol‑water fuel?

A: The 50% methanol-water mixture has lower flammability than neat methanol. It should be stored, handled and transported according to applicable chemical safety and local regulatory requirements.

Q: Does HYDRA‑R 60W require special cold‑start procedures?

A: No. HYDRA‑R 60 is equipped with an integrated thermal management system that allows it to self‑heat and start at temperatures as low as -40°C automatically.

Q: How does RMFC compare to batteries for remote sites?

A: For weeks‑or‑months missions, RMFC offers much lower TCO — no frequent battery swaps, no heavy logistics, and 24/7 runtime independent of weather.

Q: What is the environmental impact of RMFC?

A: HYDRA-R produces significantly lower local emissions than conventional diesel generators. Its overall environmental impact depends on methanol production, transportation and operating conditions.

Q: Where do I source methanol for HYDRA-R?

A: Methanol is a globally traded commodity—available from industrial chemical suppliers in virtually every country. Typical cost: $0.30–$0.50 per liter at bulk pricing. No proprietary cartridges, no single‑source dependency.
